Portland Connected Intelligent Transportation
GCTC logo 344x80.png

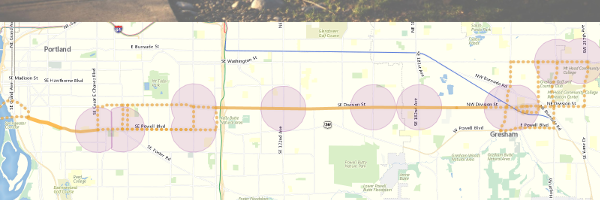

Above: Portland Skyline, Below: Powell-Division corridor
Team Organizations Intel
NetCity
Urban.Systems
OpenBike
DKS
Seabourne
Sera Architects
Urbi
UbiWhere
Mobility Cubed
InterInnov
Technical University Madrid
Team Leaders Skip Newberry
Wilfred Pinfold
Participating Municipalities Portland OR
Status Implemented
Initiative {{{initiative}}}Property "Has initiative" (as page type) with input value "{{{initiative}}}" contains invalid characters or is incomplete and therefore can cause unexpected results during a query or annotation process.

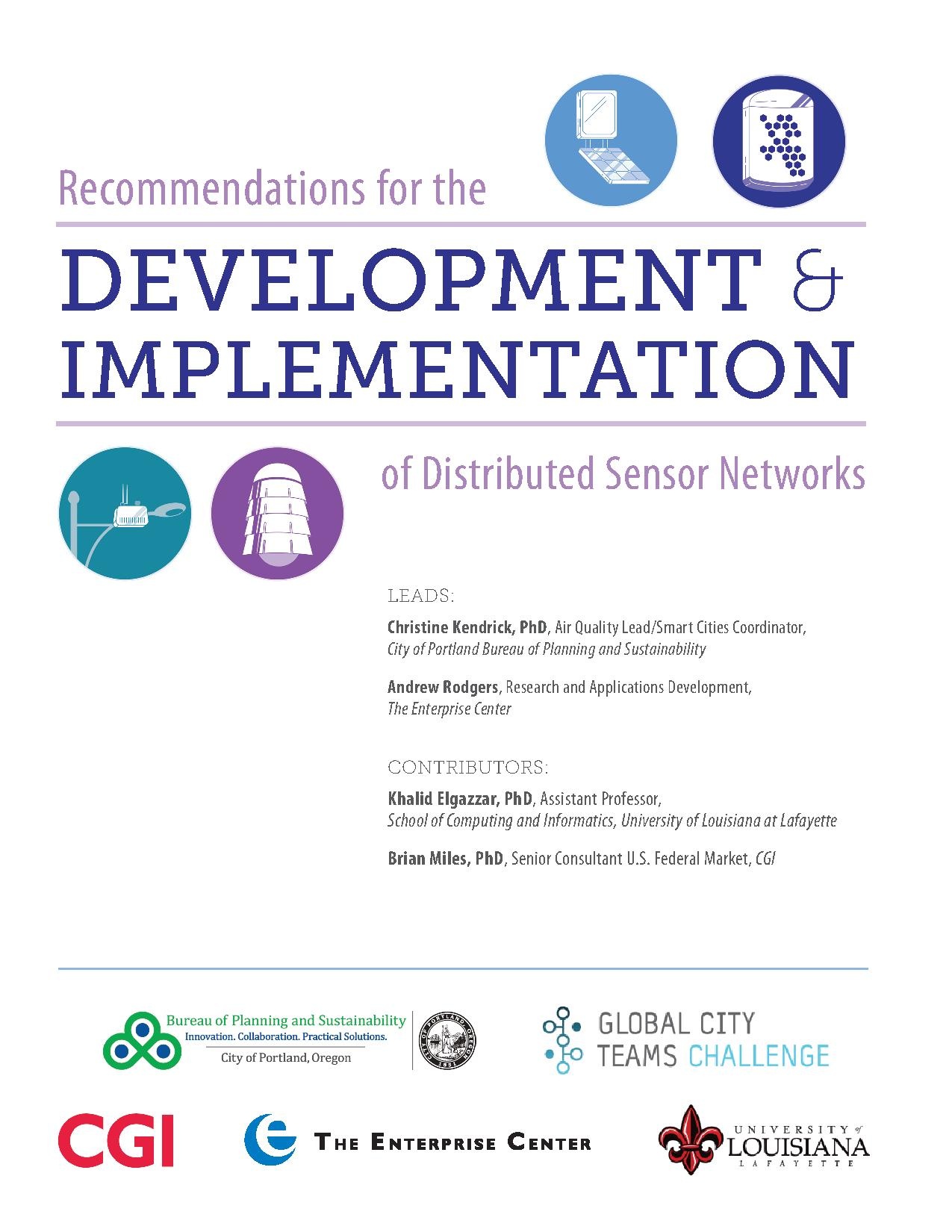

Document Download

Description

This project focuses on developing a sensor-connected “smart” corridor in Portland where transit data, traffic signalization, and air quality sensing are made available in a data portal with data visualization and analytics to improve transportation options, public health, economic development and civic engagement.

Challenges

Achieving adequate density, frequency, and precision of environmental sensor measurements to model pollution spatial distributions and the effects of mitigation strategies on pollutant concentrations with a limited budget for sensors.

Solutions

  1. Calibrate air quality sensors by deploying at one intersection and co-locating with high quality reference instruments
  2. Evaluate density, frequency, and precision of sensor measurements to secure sufficient data quality to model particulate and gaseous pollutant distributions
  3. Deploy at a sufficient number of junctions to model air pollution on the corridor
  4. Deploy across the city
  5. Share what is learned about sensor performance and quality control procedures developed with other cities to improve deployments of low cost air quality sensors

Major Requirements

NA

Performance Targets

Key Performance Indicators (KPIs) Measurement Methods

>5% reduction in the following pollutants CO, NO2, PM2.5

  1. Describe the methods to measure the performance/KPI impact to assess the benefits to the residents/citizens.
  2. Use electrochemical sensors for gases. Reduce cost to <$250 per sensor.
  3. Test various particle counters ranging from $100- $1000 to understand the level of data quality achievable from various products on the market and how this relates to the level of data needed to achieve our performance targets

Standards, Replicability, Scalability, and Sustainability

The project will explore the use of FIWARE, a set of tools and libraries with public and open-source specifications and interfaces. FIWARE is contributing to the International Technical Working Group on IoT-Enabled Smart City Framework launched by NIST. FIWARE brings the NGSI standard API which represents a pivot point for Interoperability and Portability of smart city applications and services.

Cybersecurity and Privacy

Portland Mayor's office has been working with sensor providers to define the privacy and security requirements of IOT contracts. Defining data as 'Raw' and 'Delivered' Portland will ensure that all future IOT contracts state what data must be delivered to the city under the terms of the contract 'Delivered' and this data will be owned by the city and where it does not violate privacy concerns will be shared with citizens under the cities open data policies. Further any other data collected in the process of creating the delivered data called 'Raw' data must be destroyed by the vendor and not used for any commercial purpose. This project is now exploring ways in which such contracts can be enforced in code at the sensor.

Impacts

There is a large and growing need for low cost environmental sensors which is emerging technology. The development and evaluation of new low cost sensor packages will support regional economic growth and provide new knowledge about sensor performance so that deployments across any city can ensure the use of sensors and better data quality to improve health and environmental quality.

Demonstration/Deployment

  • Phase I Pilot/Demonstration, June 2016: Calibrate air quality sensors by deploying at one intersection and co-locating with high quality reference instruments.
  • Phase II Deployment, June 2017: Evaluate density, frequency, and precision of sensor measurements to secure sufficient data quality to model particulate and gaseous pollutant distributions.
